Aperture, f-Stops, and the U.S. System

Understanding the idea of aperture, or “f-stops”, is not always a straightforward concept for beginning photographers.  There are two ways of controlling the amount of light falling on the film: the exposure time, or shutter speed, and the size of the lens opening, or aperture.  The concept of aperture is complicated by the fact that, when comparing different lenses,

Canon 35mm Camera with Unusual f/0.95 Lens

having the same size opening does not necessarily mean that the same amount of light falls on the film.  Rather, the amount of light admitted by a given opening depends on the focal length of the lens.  In other words, if the iris diaphragm opening is 25 mm, it will expose the film only one-sixteenth as much on a 200 mm telephoto lens as it will on a 50 mm lens.

F-Numbers and the f-Stop System:

To resolve this dilemma, the lens aperture is expressed as the “f-number” (usually written as N), a dimensionless parameter  expressed as  ratio between the focal length of the lens (f) and the diameter of the pupil in the iris diaphragm (D):

N = f/D.

Although expressed as a ratio (e.g., 1:4.5) in Europe for many years, in English-speaking countries, the diameter of the aperture is usually expressed as a fraction of the focal length, e.g., f/4.5, or 1/N.  Consequently, our  50 mm lens with a 25 mm opening is a nice fast f/2 lens, while our 200 mm telephoto lens with a 25 mm opening is frustratingly slow at f/8.  This gives one some insight into why fast telephoto lenses are large, bulky, and expensive- a modest 200 mm telephoto lens with a maximum aperture of  f/2 has an opening of 100 mm, or about 4 inches!

The beauty of the f-stop system is that, at a given F-number, every lens will allow exactly the same amount of light per square centimeter to fall on the film.  Thus an exposure of 1/100 second at f/5.6 will be exactly the same no matter which lens or film size one uses. For exposure to halve or double between stops, the f number must change by the square root of 2, or 1.414. The numbering of the stops is therefore arranged in a geometric sequence based on powers of the square root of 2.

The first standard series of F-numbers was proposed by Franz Stolze:

f/1.1, 1.6, 2.2, 3.3, 4.5, 6.3, 9, 12.5, 18, 25, 36, 50, 71, 100, etc.

This system became accepted in Europe, and many vintage European lenses are marked according this system. More modern lenses are marked with a slightly different series that has become the international standard, with the numbers rounded off to make them easier to engrave and remember:

f/1, f/1.4, f/2, f/4, f/5.6, f/8, f/11, f/16, f/22, f/32, f/45, f/64, f/90, f/128, etc.

Early Aperture Systems:

The origins of the concept of the F-number date back to the mid-19th century.  In 1867, Sutton and Dawson defined the “Apertal Ratio” as the ratio of the stop diameter to the focal length (i.e., 1/N), but used it only as an indicator of depth of field.  In 1874, John Henry Dallmeyer  stated that “…the rapidity of a lens depends on the relation or ratio of the aperture to the equivalent focus…”  However, it was to be many years before there was universal agreement on a mathematical scheme to formalize this principle.

Before today’s f-stop system became the standard, a variety of systems were in use to express lens aperture.  In 1899, a summary of the most common systems looked something like this:

Aperture Systems Circa 1899

Clearly, the situation with respect to lens aperture at the turn of the century was extraordinarily confusing.  Fortunately, the majority of these schemes are largely of historical interest and are rarely encountered.  Modern day camera collectors need only concern themselves with three aperture systems:  The modern f-stop method, the “U.S.” system, and a very simple numerical aperture scheme used by Kodak on their cheapest folding cameras.

This table does contain the seeds of our modern, streamlined system of f-stops in the first column.  Even though the numbers are not neatly rounded off in the manner to which we are accustomed (2, 2.8, 4, 5.6, 8, 11, 16, 22, 32, 45, and 64) this column is recognizable as f-stops as we know them.

The second column summarizes the older “U.S.” or Universal System (also called the “Uniform Scale System”) found on many pre-1920 cameras.   The U.S. System was adopted by the Royal Photographic Society of Britain in 1881, and was one of the first attempts to establish a standard for lens apertures.. At first glance, the numbering for the U.S. system appears similar to an f-stop scale, and is easily confused with the modern system:

Lens with U.S. System Aperture Scale

This system is encountered frequently on older  lenses of American manufacture, and is frequently seen on Kodak folding cameras with Rapid Rectilinear lenses.   Based on a simple numerical progression which doubles at each stop, thus maintaining proportionality to the exposure, the system is derived from the formula:

U.S.= N2/16.

Thus f/16 becomes U.S. 16, the intersection point of the two systems, and f/4 is designated U.S. 1.  Consequently, the U.S. system numbers correspond to settings on the modern f-stop scale, and a lens with U.S. markings can be used in the same manner as a conventionally-labeled lens by counting up and down from f/16 (see table below).

The numerical system consists of only four stops (1,2,3,4) corresponding approximately to f/11, f/16, f/22 and f/32.  Most commonly, it is encountered on inexpensive folding cameras such as the Kodak Vanity line as a simple punched wheel allowing rotation of various sizes of aperture in front of a meniscus lens:

1920s Kodak Vanity Camera with Simple Numerical Aperture System

Occasionally, the numerical system can be found on base level Kodaks with iris diaphragms and Ball Bearing Shutters,such as this No. 1A Kodak Junior with a meniscus lens:

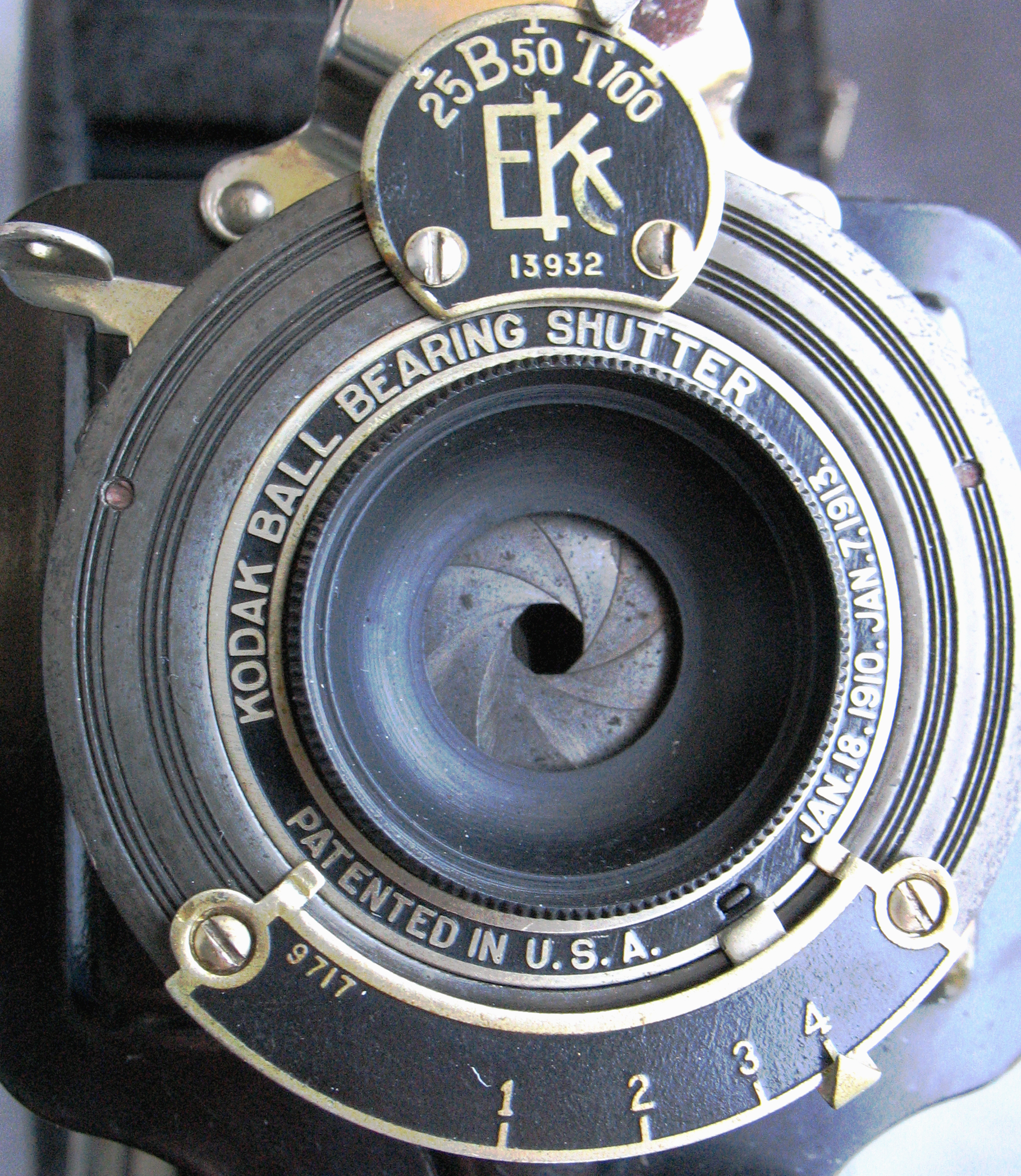

1A Kodak with Meniscus Lens and Numerical Aperture System

The relationship between the U.S. and modern systems can be expressed more simply as follows:

f/stop 4 5.6 8 11 16 22 32 45
U.S. 1 2 4 8 16 32 64 256
Simple lens (Approximate) 1 2 3 4

Once again, note that the U.S. and modern systems intersect at f/16, and therefore the U.S. system can be used readily by counting stops up and down from this point..

References:

“F-number.”  Wikipedia Article.  http://en.wikipedia.org/wiki/F-number.

Konig, Mischa.  Kodak Classics:  Kodak Folding Cameras (Includes discussion of f-stop systems).  http://kodak.3106.net/index.php?p=213.

“Uniform System of Lens Apertures.” http://www.sizes.com/tools/uniform_system.htm.
